Reinforced Soil Walls and Slope Reinforcement
2023
AIN EL SOKHNA - SUEZ GOVERNORATE - Egypt
Roya Developments
TELAL EL SOKHNA’ PROJECT

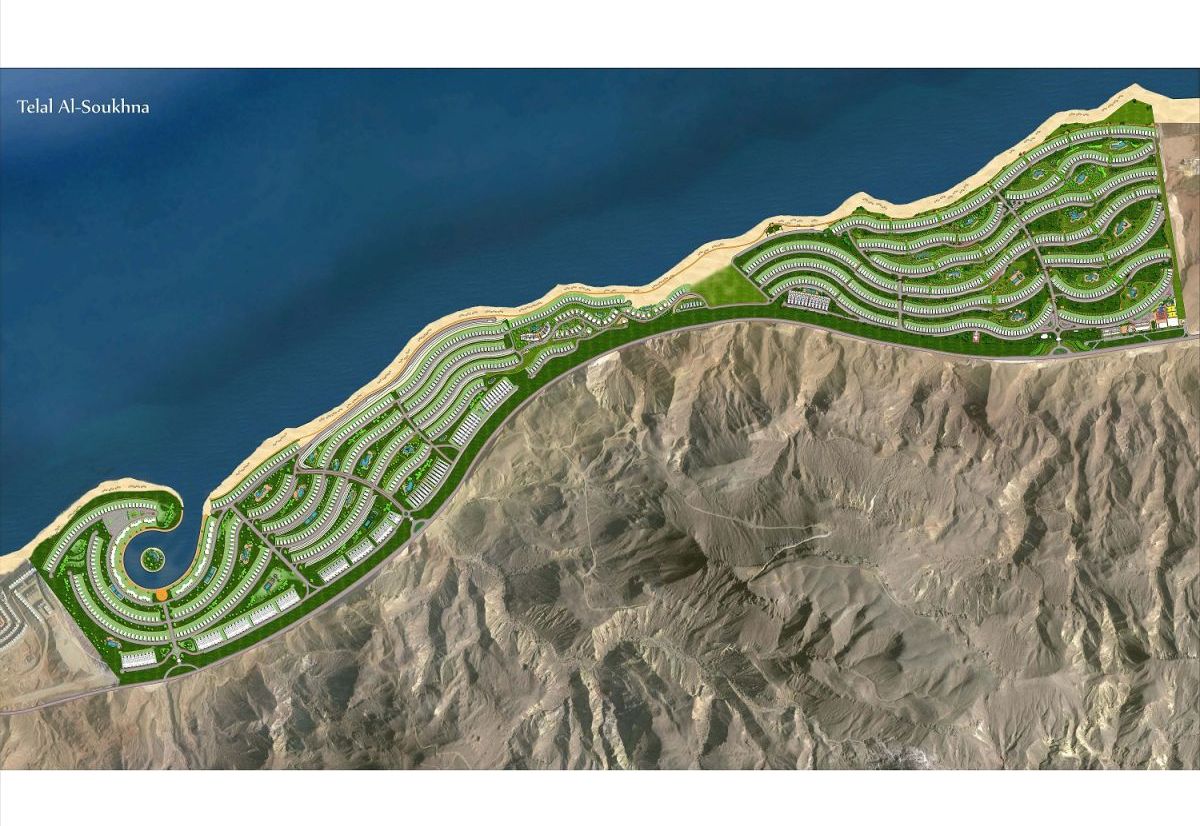

Masterplan of the ‘Telal El Sokhna’ project (courtesy: google images)

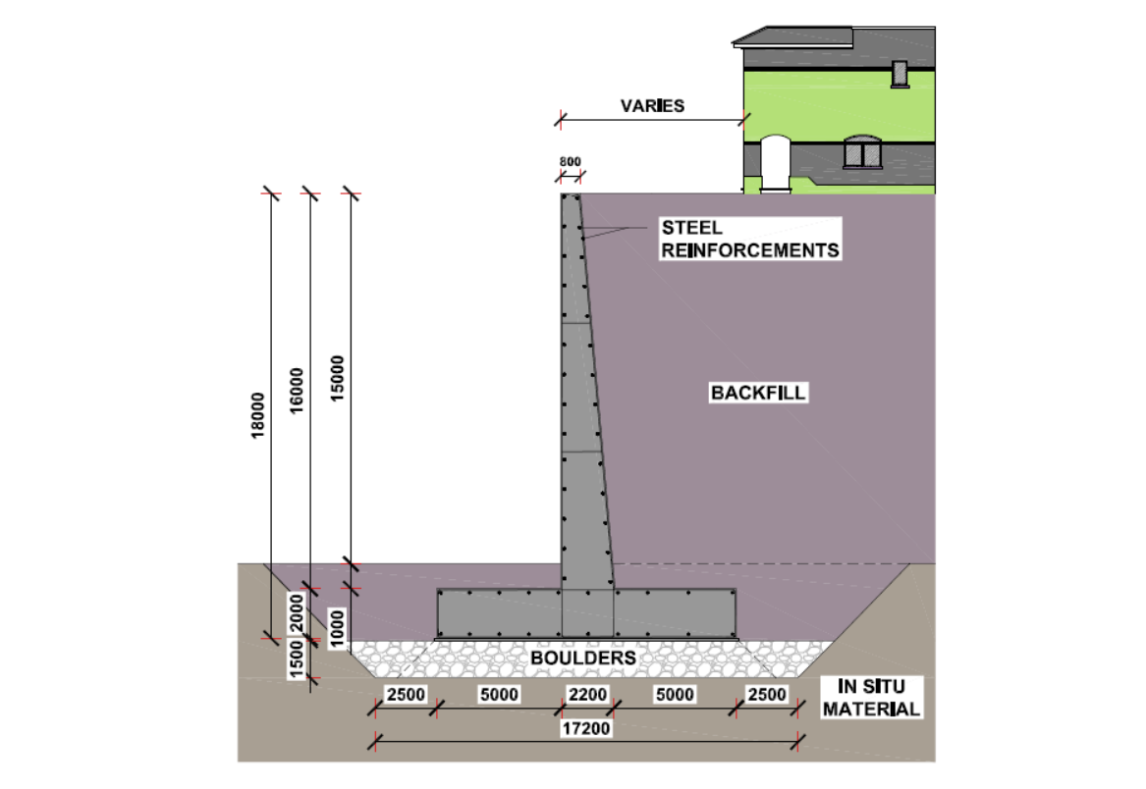

Section of original Reinforced Cement Concrete wall for average height

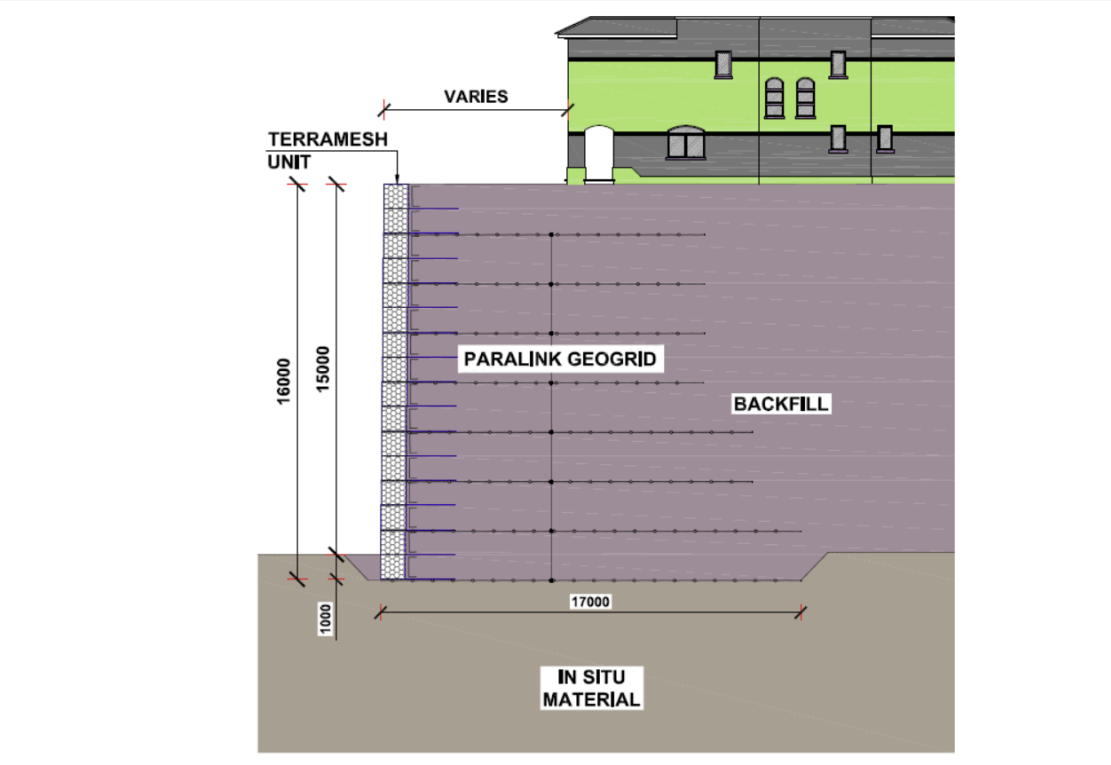

Section of implemented Paramesh MSE wall for average height

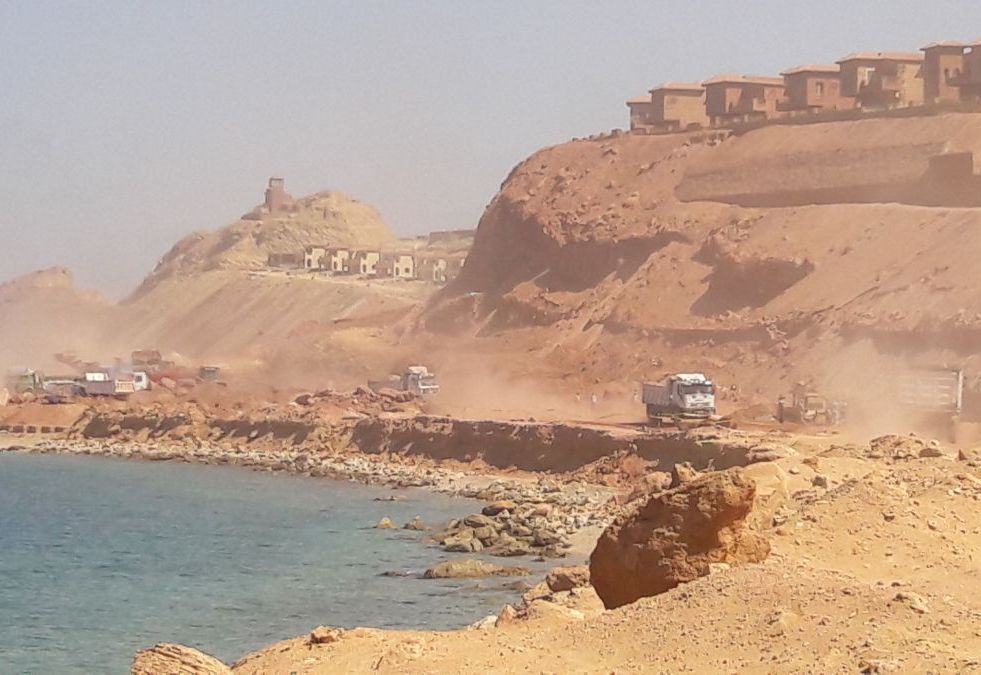

During construction: initial site activities
During construction: Paramesh MSE wall installation in progress

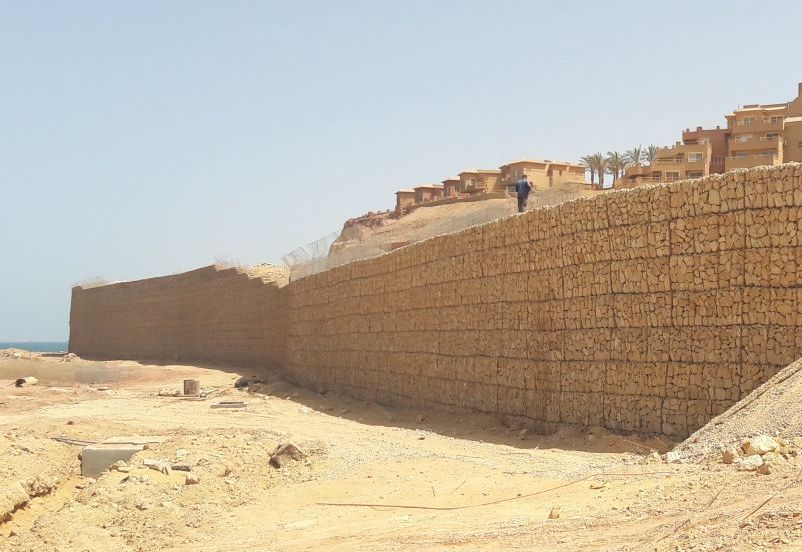

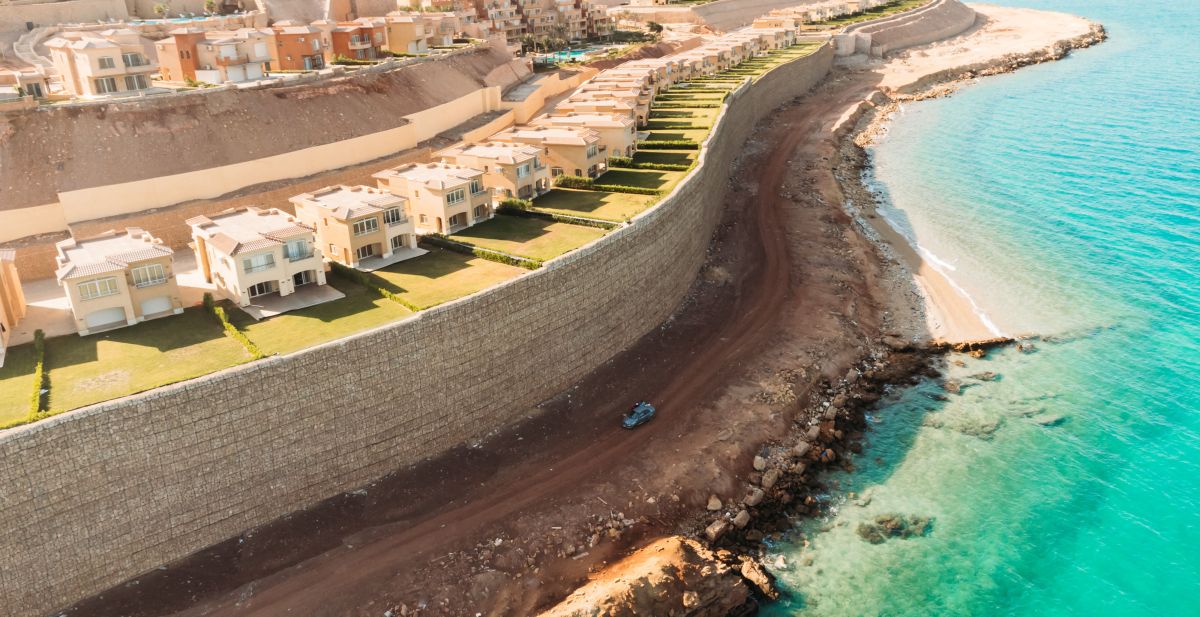

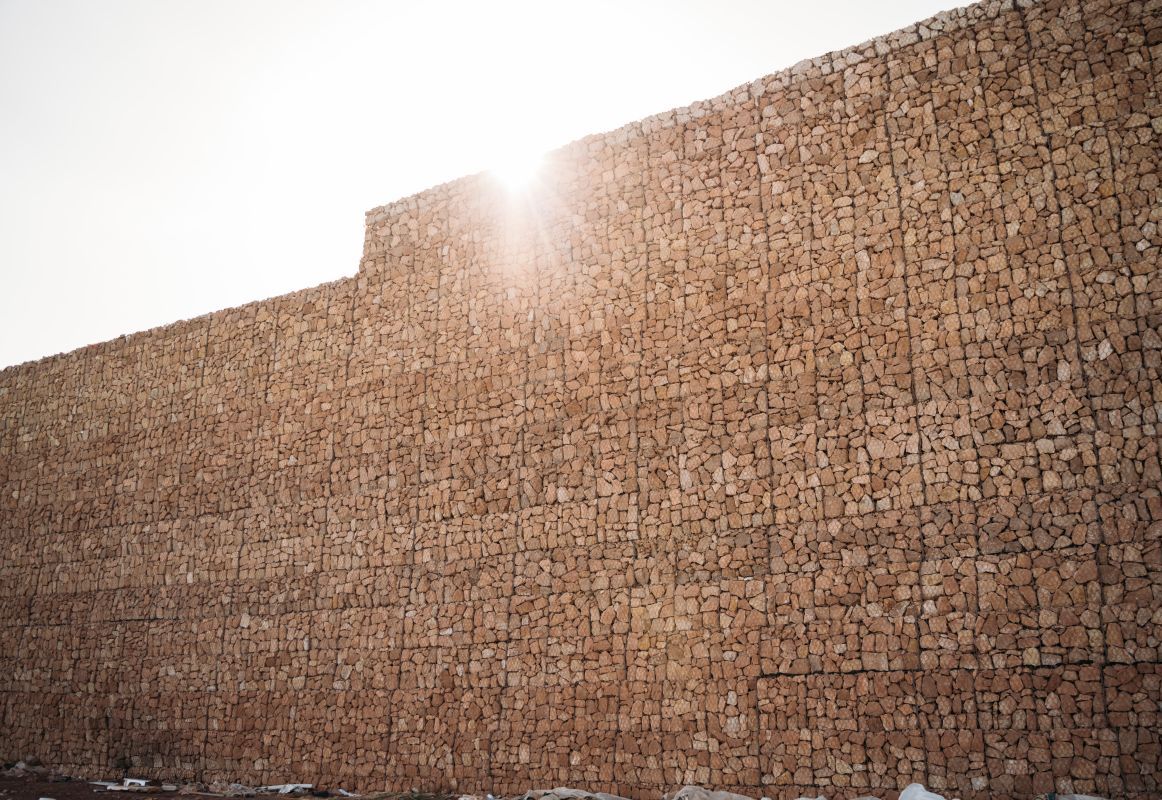

Completed: close view of Paramesh MSE wall
Problem
‘Telal El Sokhna’ is a real estate development project located along the longest beach promenade in Ain El Sokhna, Egypt, between majestic mountains and the pristine waters of the Red Sea. To ensure a panoramic view of the sea for most of the communi…
Solution
Maccaferri’s Paramesh MSE Wall system (with Terramesh facia units & Paralink geogrids) was eventually implemented, being a cost and time-effective alternative. The Terramesh units meet the architectural requirement as the gabion face could be filled wi…
Used Products
