Vertical Drainage Works
2022
SÃO PAULO - SÃO PAULO - Brasil
HELBOR BROOKLIN
BRONX IMPERMEABILIZAÇÕES
HELBOR BROOKLIN
(1)
(2)
(3)
(2)
(3)
(4)
(3)
(4)
(5)
(4)
(5)
(6)
(5)
(6)
(7)
(6)
(7)
(1)
(7)
(1)
(2)
Problem

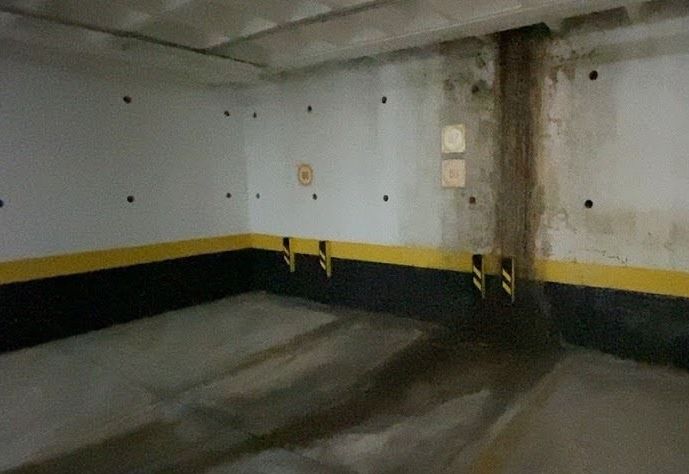

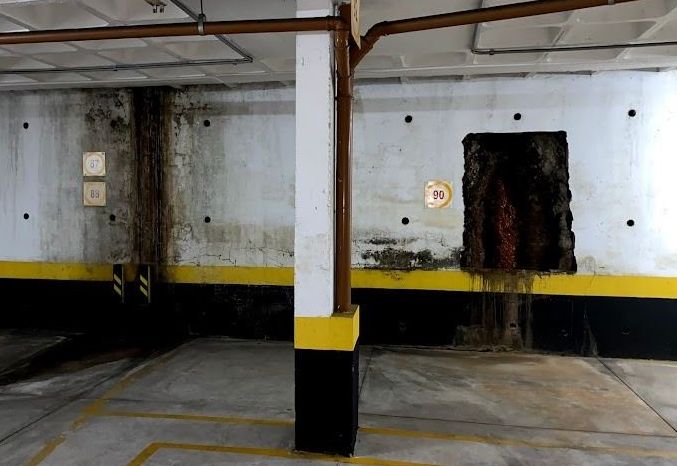

The development was constructed in 2004 and included a basement level. Its retaining structures were built without the consideration of a vertical drainage system, which, after a few years, allowed water infiltration into the basement through the retaining walls.
Solution

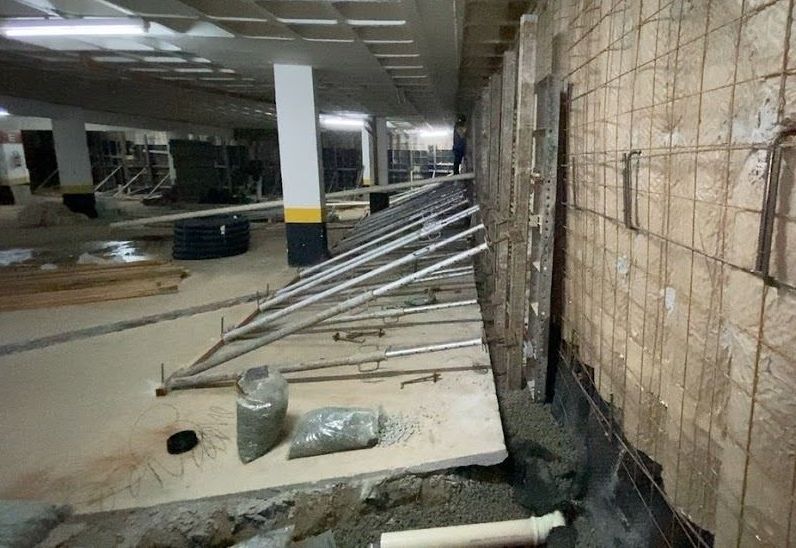

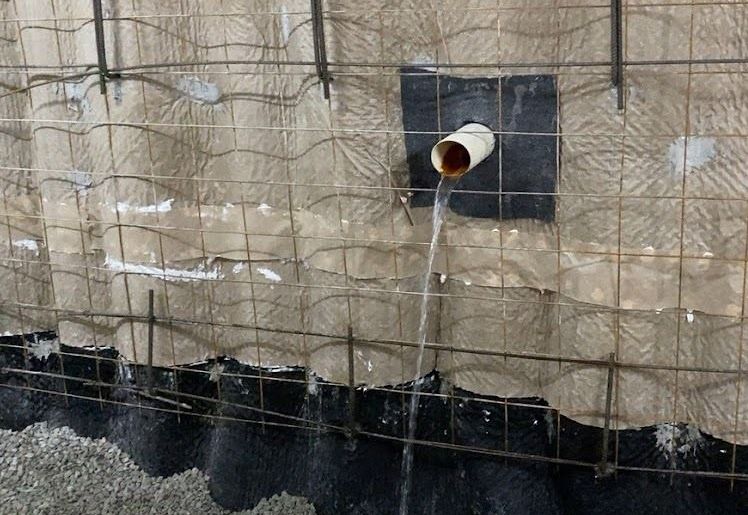

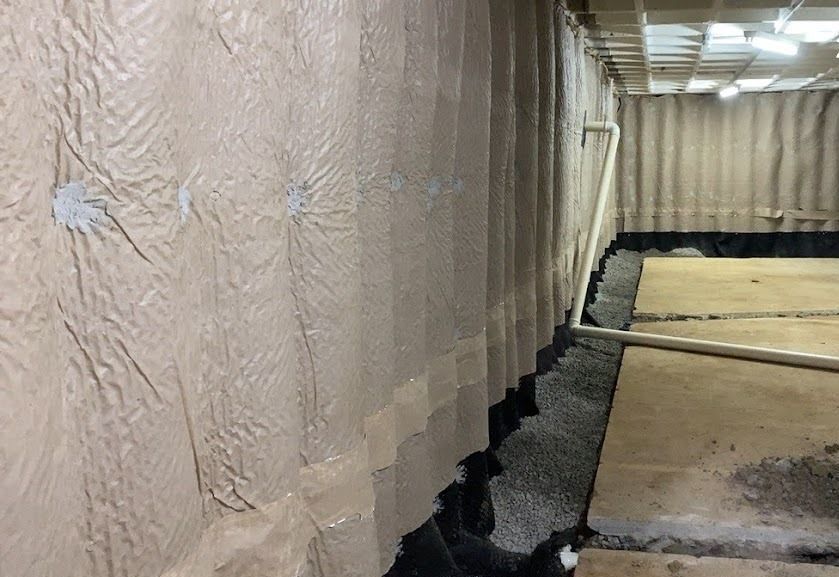

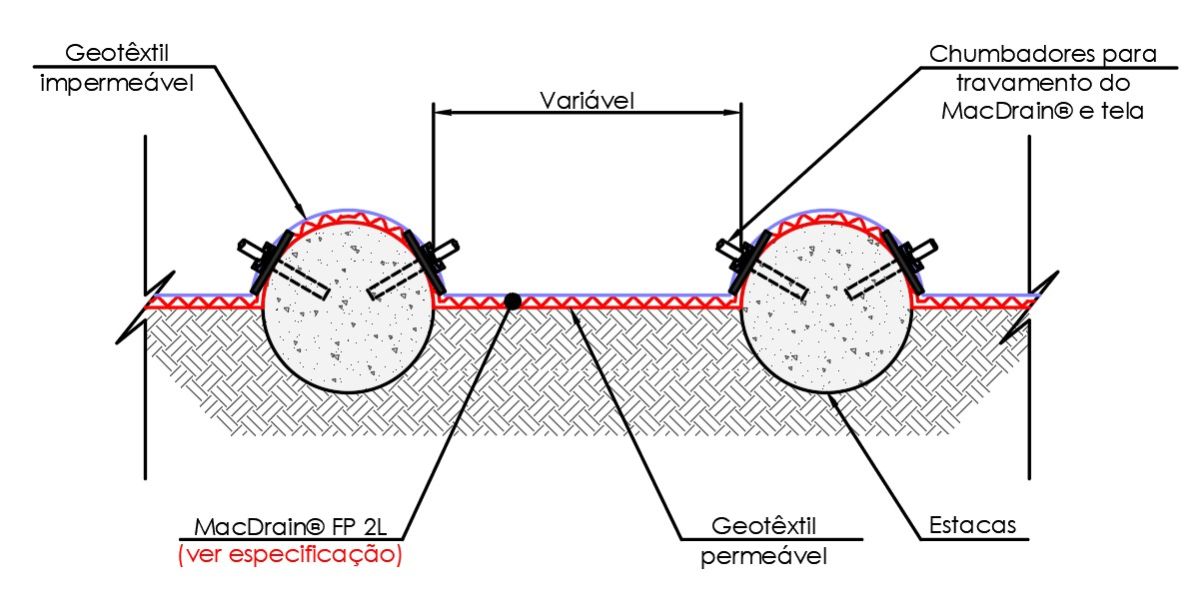

The solution for this project involved the demolition of the existing retaining wall and the installation of a vertical drainage system using the Macdrain FP 2L drainage geocomposite. Macdrain was attached to the piles using a pin driver, with the non-woven geotextile side in contact with the soil. The collected water was directed to an underground drainage trench with a 0.5% slope and then routed to a sump pit also located underground.
