ROCKFALL PROTECTION FOR NARINGGUL ACCESS ROAD WITH SIMPLE DRAPERY
ROCKFALL PROTECTION FOR NARINGGUL ACCESS ROAD WITH SIMPLE DRAPERY_0
ROCKFALL PROTECTION FOR NARINGGUL ACCESS ROAD WITH SIMPLE DRAPERY_1
ROCKFALL PROTECTION FOR NARINGGUL ACCESS ROAD WITH SIMPLE DRAPERY_2
ROCKFALL PROTECTION FOR NARINGGUL ACCESS ROAD WITH SIMPLE DRAPERY_3
Problem

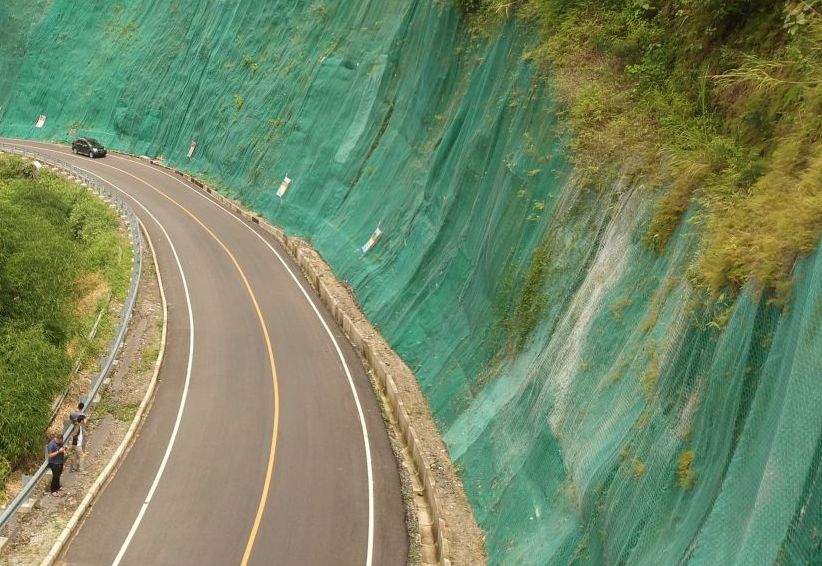

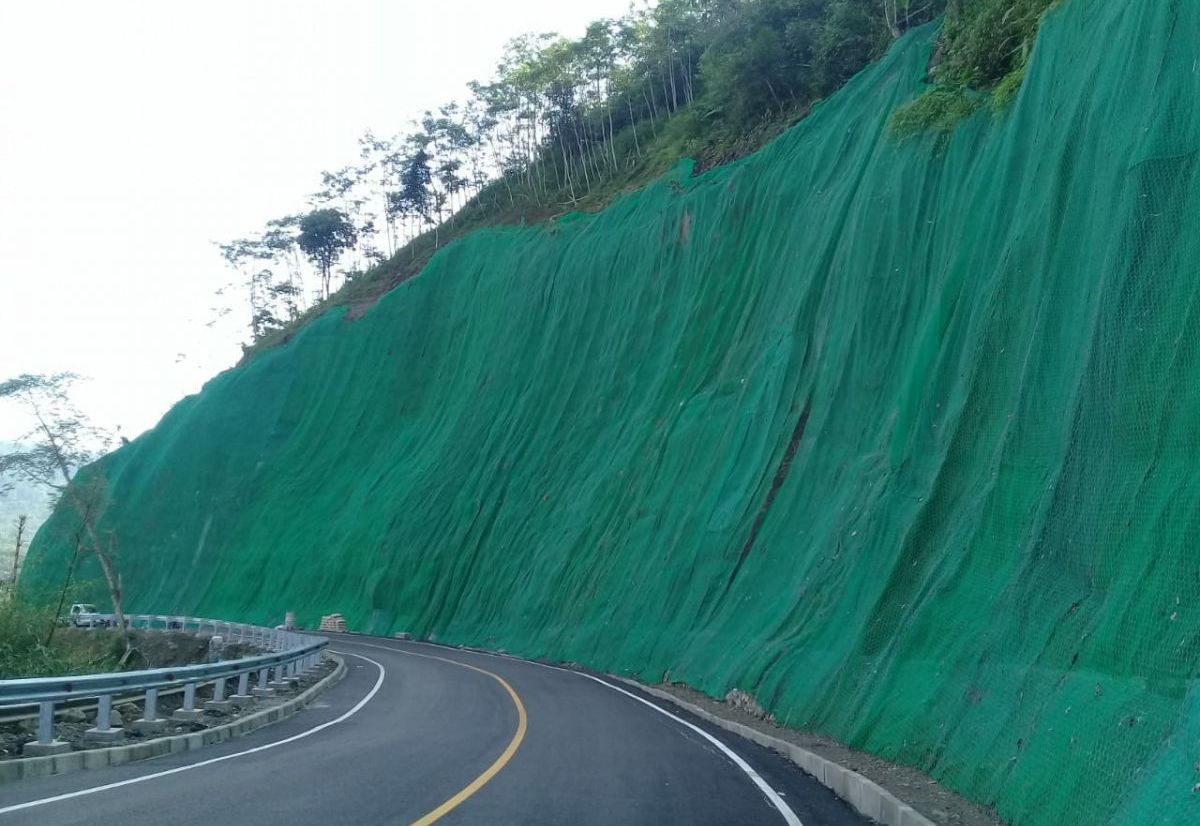

This project located on the national road that connects Cianjur, Naringgul and Cidaun in West Java. The plan was to widen the existing road by cutting the slope that consists of heavily eroded rocks. The total length of the slope that needed to be protected was approximately 320 m, while the total height of the slope varied from 20 to 50 metres, with a an angle of up to 80Ā°deg.
Solution

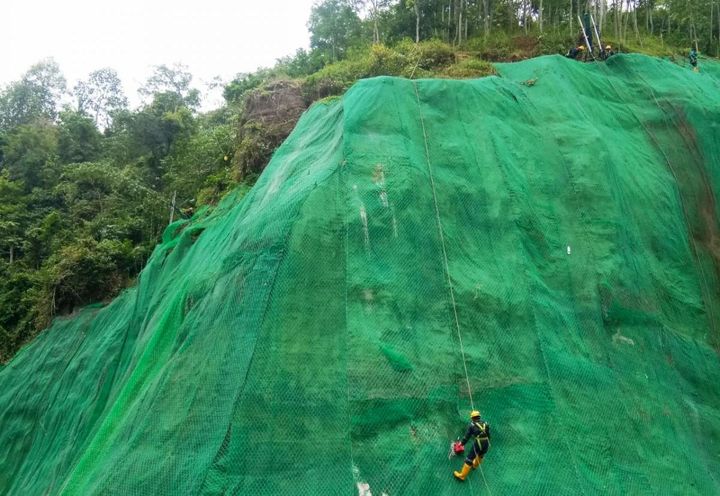

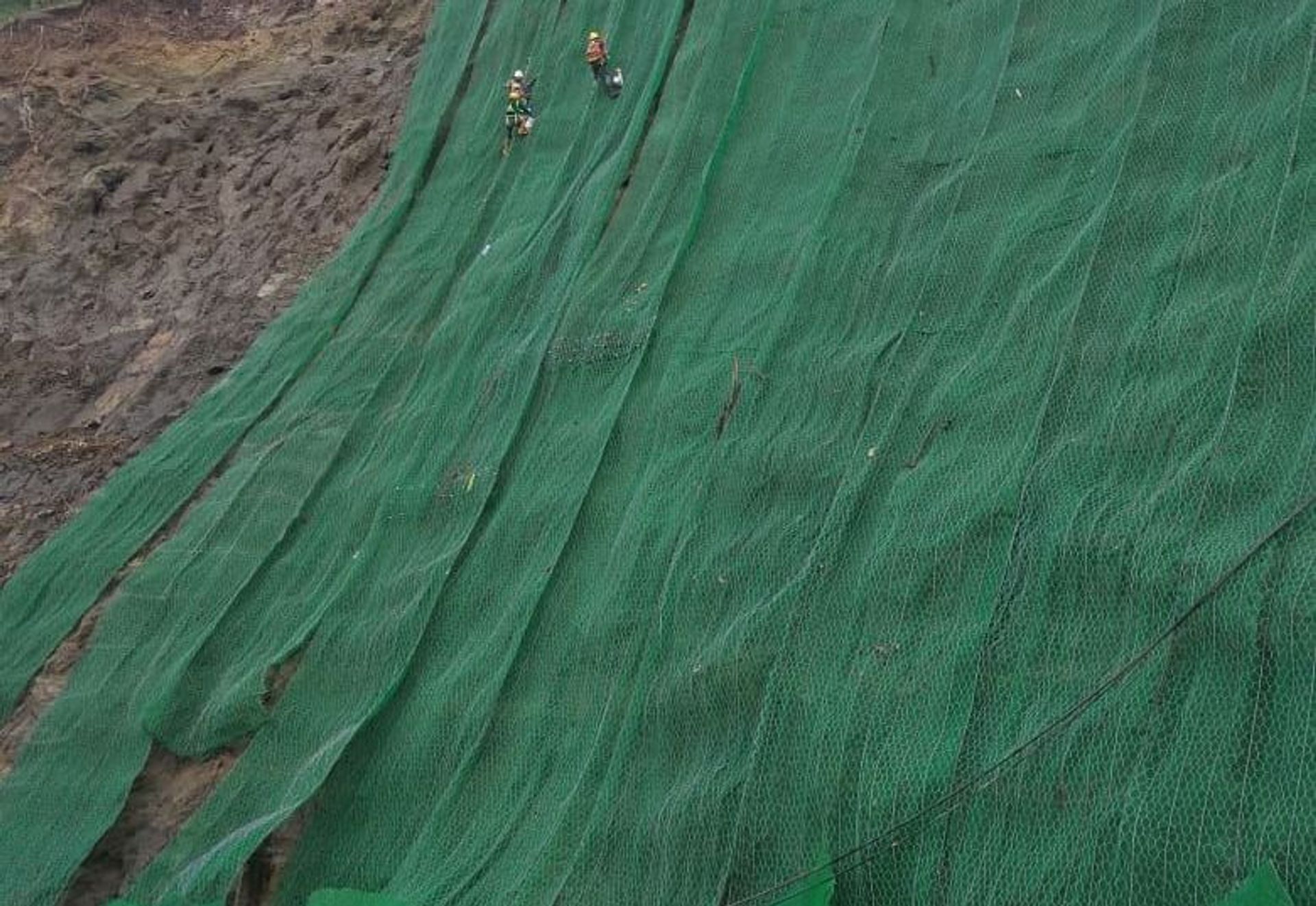

The client required two types of steel mesh with a certain specification. The first one was a high strength wire mesh, Zn-Al coated with 150 kN/m tensile strength equivalent to SteelGridĀ® HR 30 to protect the rock slope and standard wire mesh, Zn Coated with only 50 kN/m of tensile strength equivalent to DT mesh to cover the slope made up of smaller debris of rocks with coarse soil material. Both of the products were installed as a simple drapery system (using only top anchors) and a collecting ditch at the toe of the slope. All the SteelGridĀ® proved to be effective in protecting the road against rockfall.
Used Products
MacArmour & SteelGrid
MacArmour MacArmour is a 2-in-1 product that combines a homogeneous structure of bi-directional steel wire ropes with double twView
