Reinforced Soil Walls and Slope Reinforcement
2020
MARAN - PAHANG - Malaysia
Public Works Department

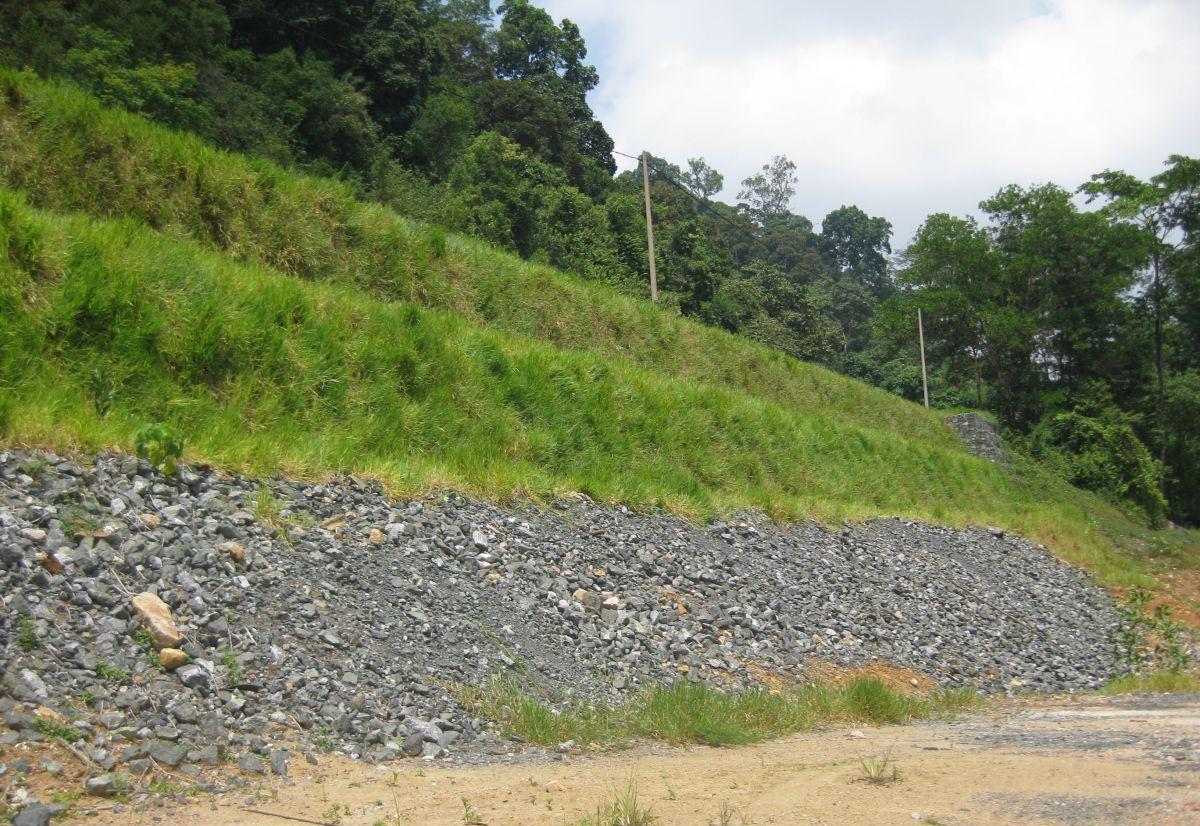

REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA
REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA_0
REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA_1
REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA_0
REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA_1
REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA_0
REINFORCED SOIL SLOPE AT MARAN, PAHANG, MALAYSIA_1
Problem

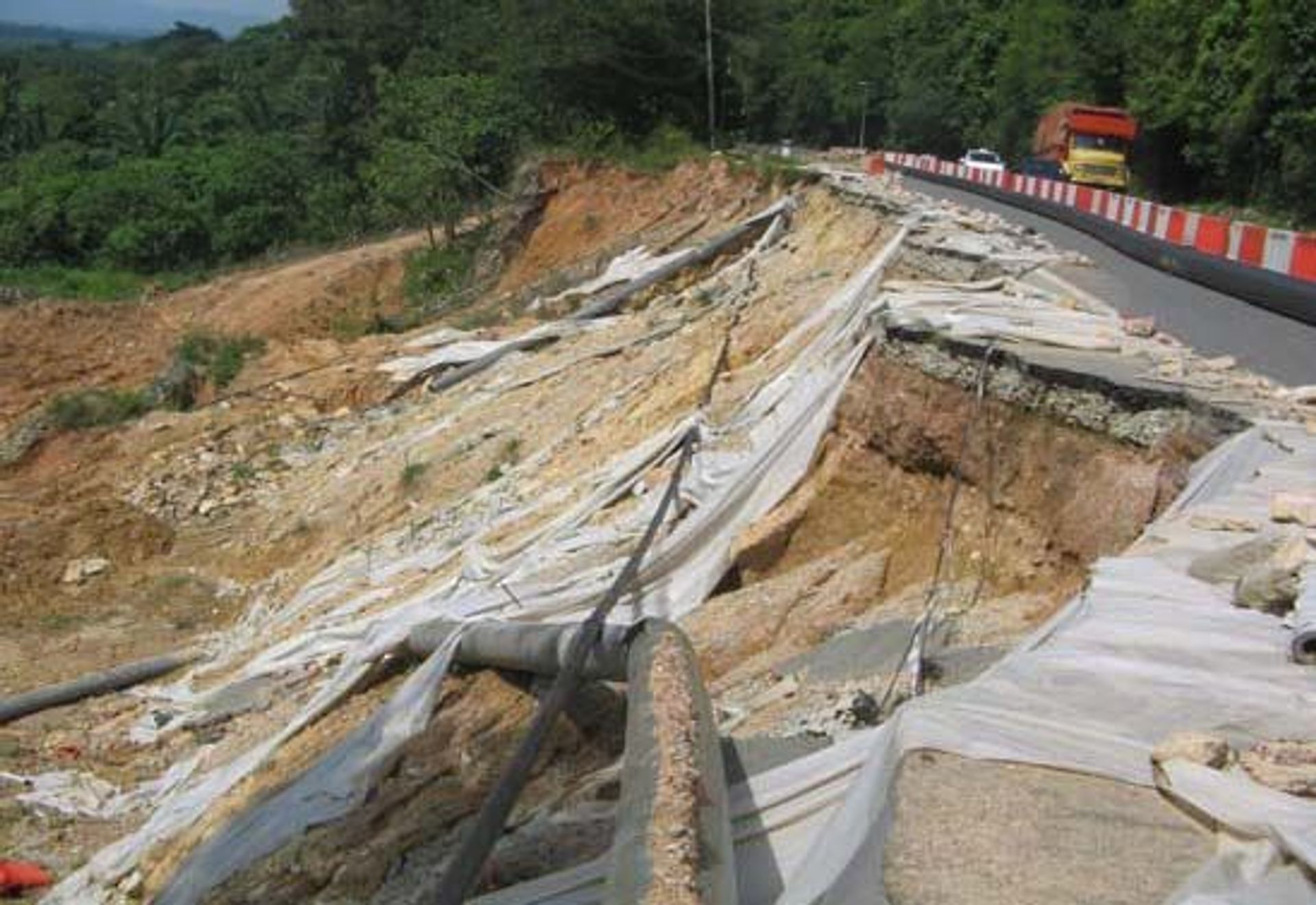

The FT002 Route is a federal road which connecting Kuala Lumpur to Maran, Pahang. An underground water pipe burst at Section 262, Bukit Genting and it caused a huge slope failure where the existing road collapsed. An emergency work repairing the damaged road needed to be done quickly so to avoid further interruption to the traffic.
Solution

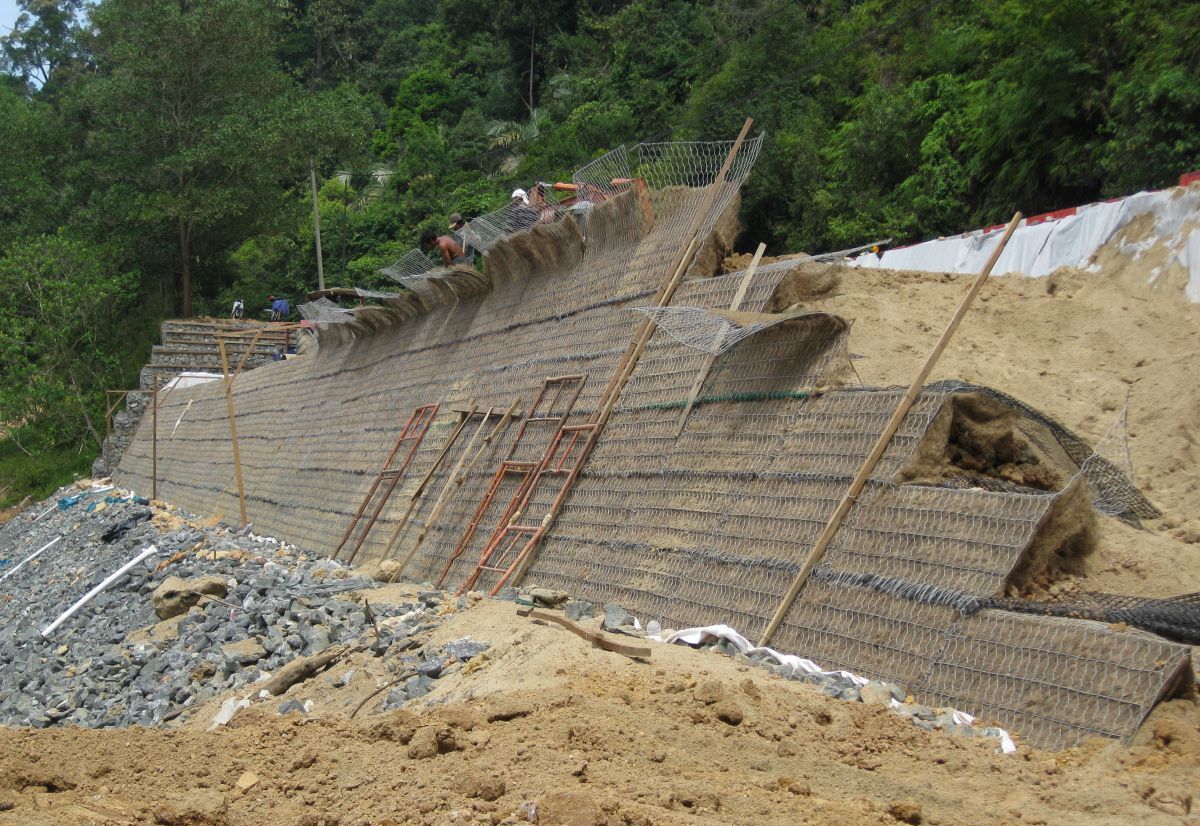

Green Terramesh had been chosen by the consultant due to its suitability to site condition and its greenery fascia which blend it very well with the existing environment. Maccaferri had designed Green Terramesh combined with MacGrid WG15 as reinforcement for the reinforced soil slope. The height of the proposed reinforced soil slope was 9.6m and the length was approximately 80m. Granular fill was used for the system to prevent build up of pore water pressure. The rehabilitation works completed in a duration of 3 months and the client was satisfied with the fast completion.
Used Products

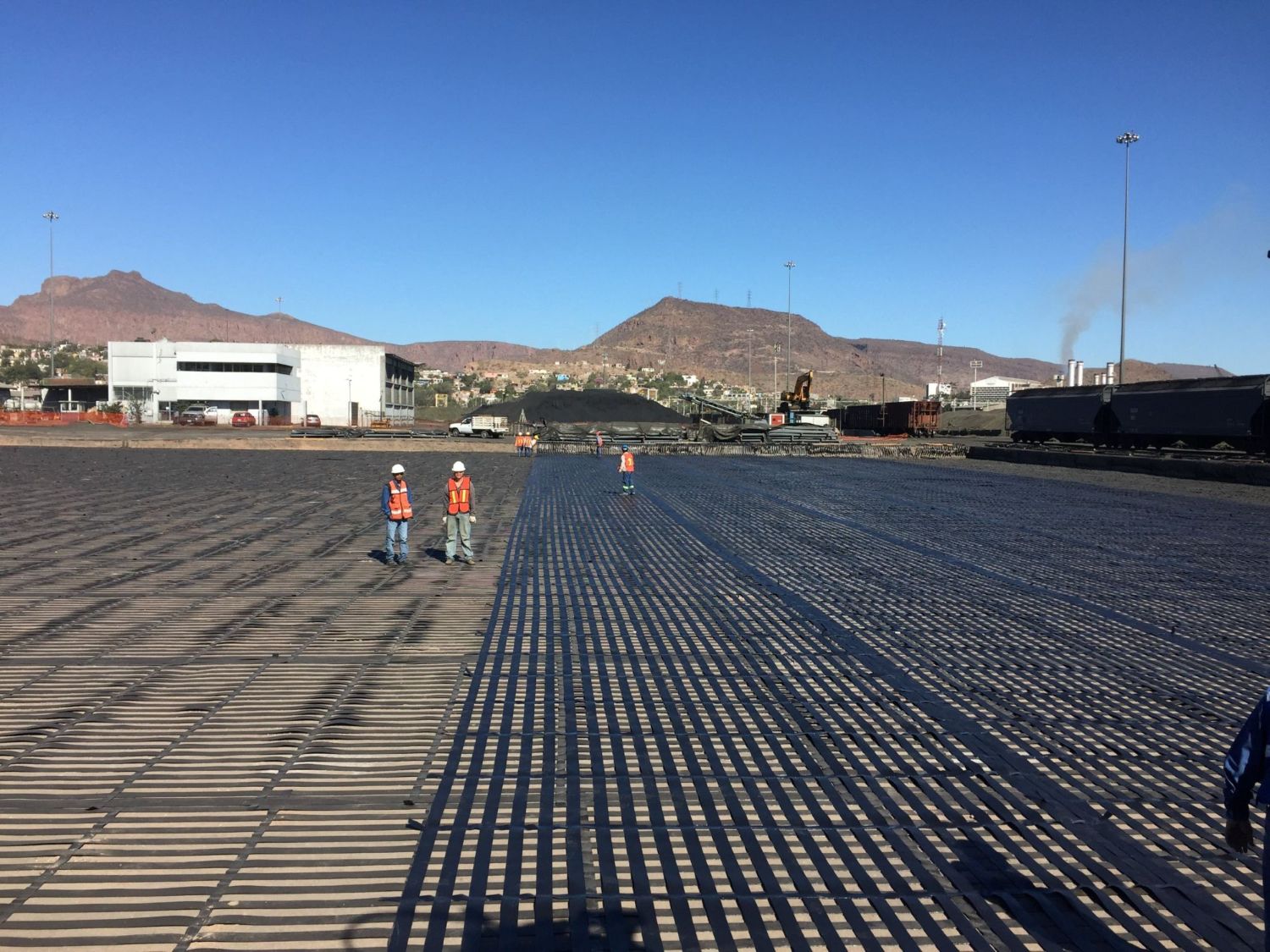

MonoAxial GeoGrids
Paragrid™ WAn enhanced high performance knitted geogrid characterized by a very high modulus and the lowest reduction factors. DesiView
