Reinforced Soil Retaining Structure and Slope Reinforcement
2021
ESCADA - PERNAMBUCO - Brasil
Plínio Cavalcanti & Cia Ltda
Plínio Cavalcanti & Cia Ltda
PASSAGEM INFERIOR DA RODOVIA BR-101 EM ESCADA
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Problem
A viaduct project was carried out on BR-101, in the municipality of Escada-PE, in the direction from Recife to Maceió, to create a turnaround point. During the construction of the project, the road’s profile needed to be changed, raising its levels through the construction of embankments. However, the lateral projection of the embankment would intersect with the turnaround road if the slope was not made vertical with an appropriate retaining structure.
Solution

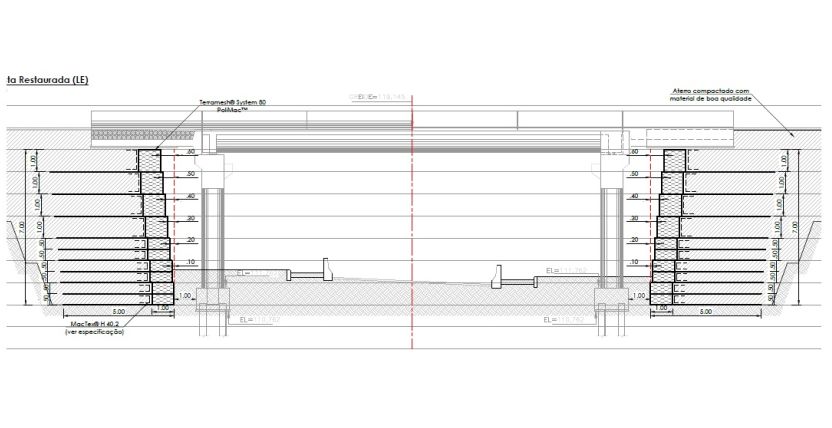

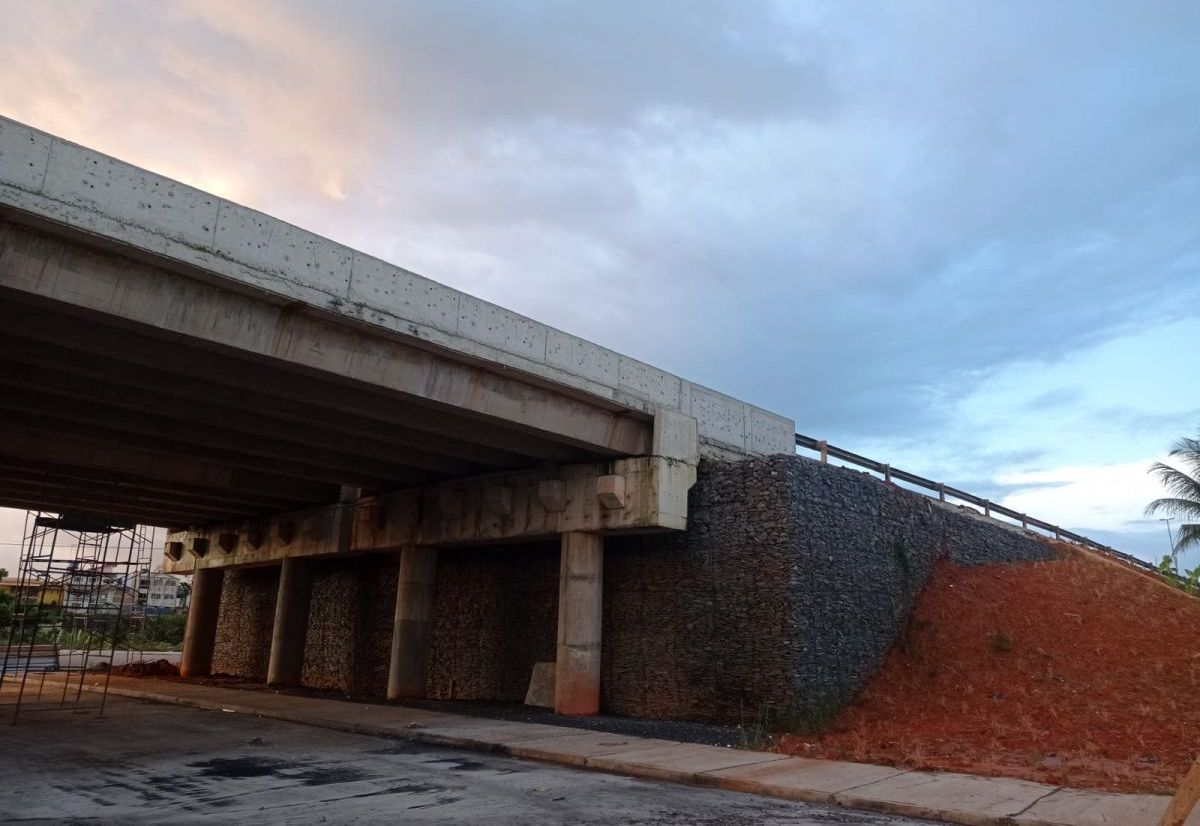

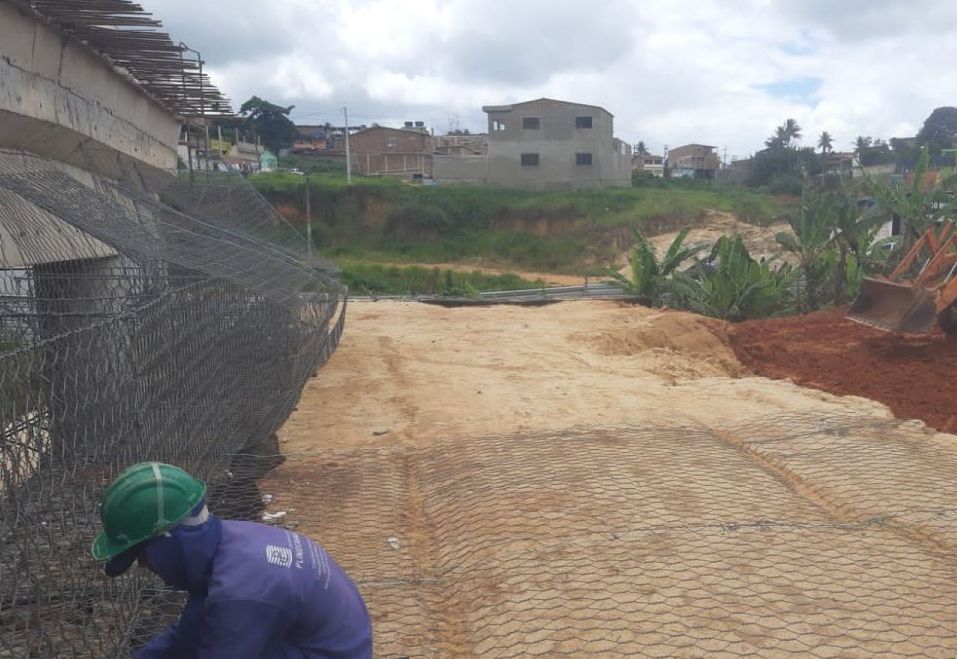

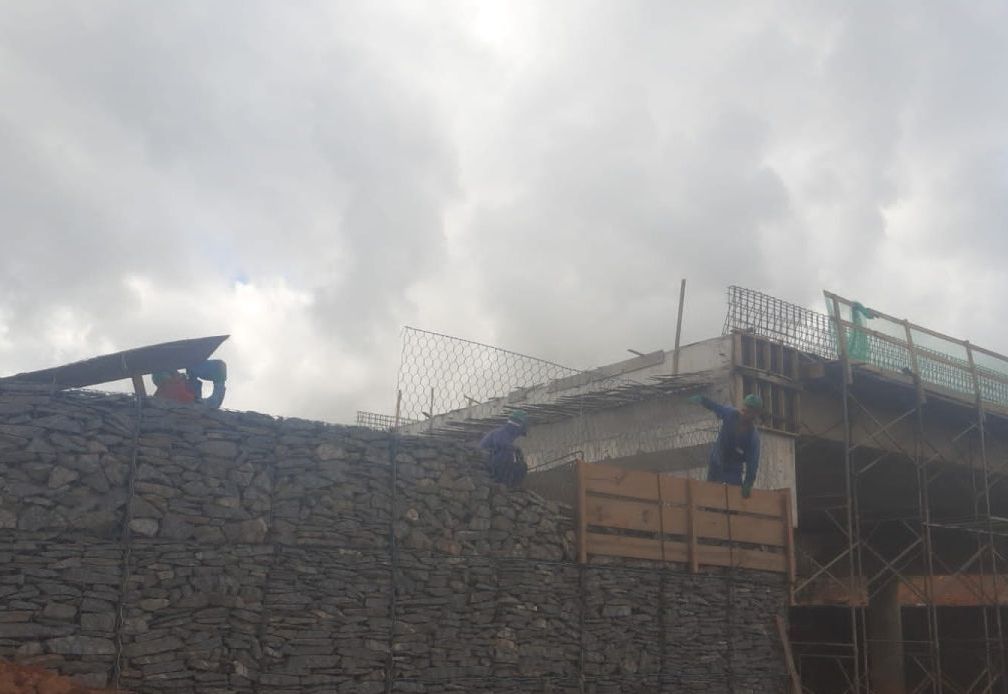

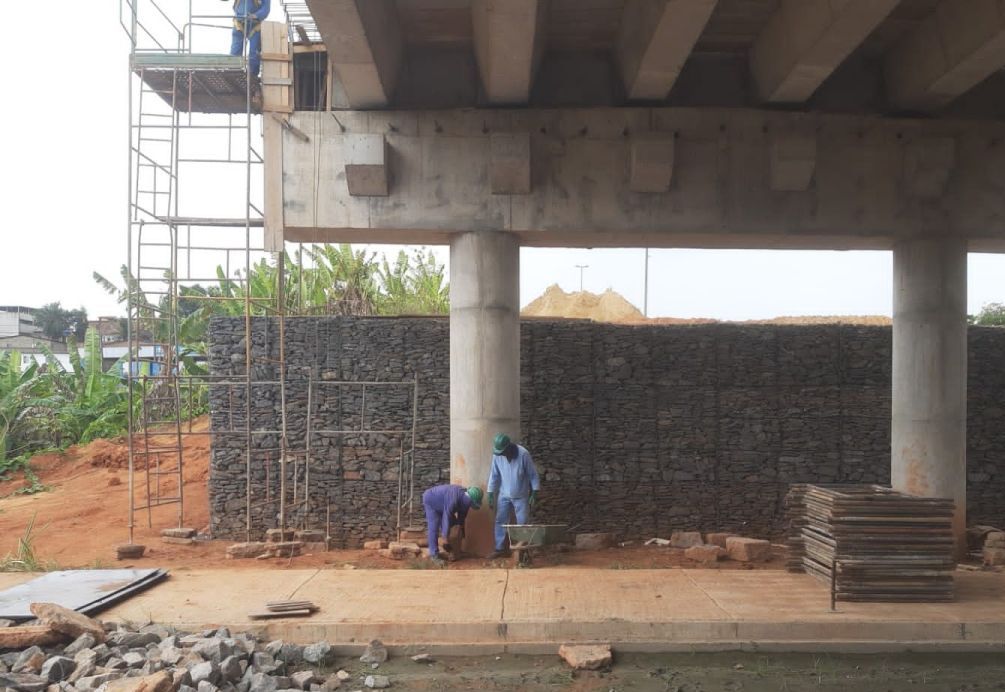

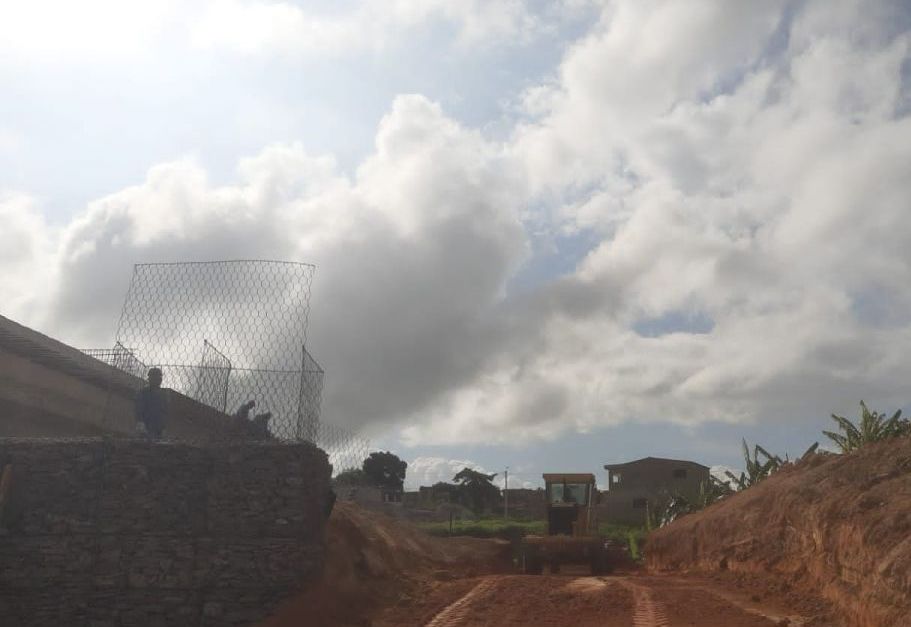

A containment and verticalization project for the meeting embankment was implemented using the reinforced soil system with the Terramesh System wall. The solution met the recommended technical and economic criteria, with some of its key advantages being a draining face, ease of construction, and long-term performance.
Used Products
Gabiões
Os Gabiões tipo caixa da Maccaferri são elementos prismáticos formados pela malha hexagonal de dupla torção com revestimento metálico ou revestimento Visão

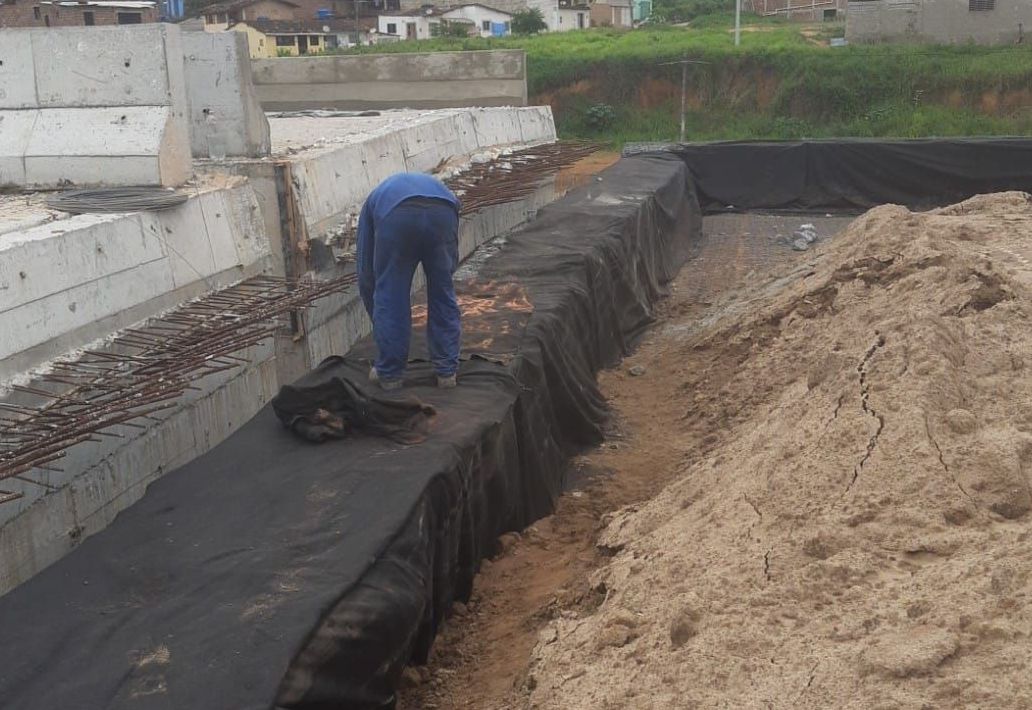

Geotêxtil Não Tecido
Os geotêxteis nãotecidos são geossintéticos planos constituídos por fibras poliméricas cortadas, agulhadas e/ou consolidados térmicamente por calandraVisão
Painéis
Os painéis HEA da Maccaferri (High Energy Absorption/ Alta Absorção de Energia) são os produtos mais rígidos dentre as várias malhas dos nossos sistemVisão
