Reinforced Soil Walls and Slope Reinforcement
2021
N2 FREEWAY - DURBAN, KZN - South Africa

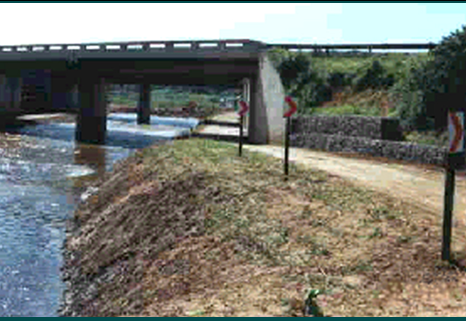

MHLANGA RIVER BRIDGE
MHLANGA RIVER BRIDGE
MHLANGA RIVER BRIDGE_0

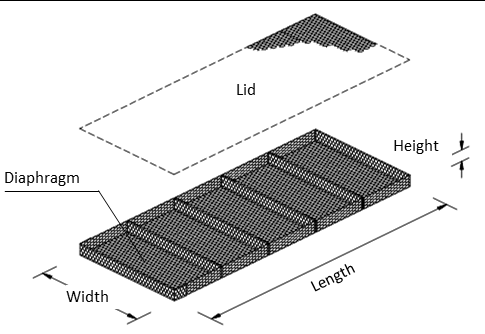

Reno Mattress Unit
Problem
The gravel road which ran alongside the bridge abutments, was constructed to cater for the needs of the local community and for the transport of sugar cane. Sugar cane transportation was severely hampered, each time the fast flowing river flooded, causing the road to wash away.
Solution
Galvanised Reno mattresses measuring 6x2x0,3m, with a mesh wire diameter of 2,7mm, were used to line the river bed. A Gabion cut-off wall was constructed on the upstream end of the mattresses to prevent any movement or upliftment of the mattresses. The mattresses were then covered with topsoil. A concrete road was thereafter constructed.
Used Products
